Customer onboarding using Coinme's Customer Onboarding process requires phone 2FA and KYC with the following flow:

1. Performing 2FA
   1. 2FA Mobile Auth
   2. 2FA Instant Link (if Mobile Auth is unsuccessful)
2. Pre-Fill
3. Verify
4. Customer Onboarding

This KYC process is data-driven, meaning users don't need to upload a government-issued ID. Users must submit their phone number and date of birth or SSN.

🚧

Before starting, Partners need to send a list of phone numbers they intend to test with to their designated Coinme Account Manager. These numbers will then be whitelisted by the Coinme team. Once whitelisted, the Coinme team will inform the Partner and provide them with test customer data for the staging environment.

1. Performing 2FA

Successful 2FA will result in an authenticated phone number, ensuring that the user is in possession of the phone and not just a bad actor who knows someone else’s phone number. 2FA can be done in two ways: Mobile Auth and Instant Link. Both ways are similar and can be broken down into three steps:

1. Initiate the authentication
2. Follow an authentication URL
3. Check authentication result

1.1 2FA - Mobile Auth

This passive flow doesn’t require user input or action, only the device's IP address.

Assumptions:

• This authentication flow will only work if the user is connected to a mobile network. It will not work if the user is connected to WIFI
• There is a predefined finalTargetUrl where the flow will be redirected to, after following the authentication URL

1.1.1 Mobile Auth - Initiate the authentication

Sample API Request: POST

URL: https://caas-staging.coinme.com/services/mobileAuth
headers:
"Authorization":"asdfghj", //authorization token, required
'User-Agent: partnerapi' //required
Request body:
{
  "deviceIp": "166.137.217.20", // required; IPv4 or IPv6
  "consentTransactionId": "EWSrelease-01092020-testTMO5", // required; Unique id of the consent collected by the client
  "consentDescription": "Test description", // required; The client describes the type of consent (electronic/paper), use case and reference to the version of Terms and Conditions (T&Cs), if applicable
  "consentCollectedTimestamp": "2023-08-18" // required; Date/Time field when the original consent was collected by the client (format: YYYY-MM-DD)
}

Sample API Response:

Successful Response:
{
  "data":
  {
    "redirectTargetUrl": "http://www.example.com?vfp=abc123..."
  },
  "errorResponse": null
}

Failure Response:
{
  "data": null,
  "errorResponse": {
    "httpStatus":"200",
    "timestamp":"2022-02-01T18:59:28.297Z",//UTC
    "path":"POST /services/mobileAuth",
    "errorData": [
      {
        "errorCode":"123-123-123-123",//The error code is just a sample showing the structure of the error code.
        "message":"Required field missing or blank"
      }
    ],
    "retry":"N"
  }
}

1.1.2 Mobile Auth - Follow the authentication URL

Upon receiving the redirectTargetUrl from the initiate call, the caller should perform a GET request on it and on completion the user will be redirected to a predefined finalTargetUrl.

Sample API Request: GET

URL: http://www.example.com?vfp=abc123.. // this is the redirectTargetUrl from the previous call

Sample API Response:

The caller will be redirected to a predefined finalTargetUrl with a vfp query parameter appended to it, for example:

URL: http://www.final-target-url.com?vfp=def456...

1.1.3 Mobile Auth - Check authentication result

Extract the vfp value from the URL and use it to ask for the authentication result. Not the same as the vfp from the redirectTargetUrl.

Sample API Request: POST

URL: https://caas-staging.coinme.com/services/mobileAuthFinish
headers:
"Authorization":"asdfghj", //authorization token, required
'User-Agent: partnerapi' //required
Request body:
{
  "verificationFingerprint": "def456..." // extracted from the URL at finalTargetUrl
}

Sample API Response:

Successful Response:
{
  "data":
  {
    "authenticatedPhoneNumber": "15553031212"
  },
  "errorResponse": null
}

Failure Response:
{
  "data": null,
  "errorResponse": {
    "httpStatus":"200",
    "timestamp":"2022-02-01T18:59:28.297Z",//UTC
    "path":"POST /services/mobileAuthFinish",
    "errorData": [
      {
        "errorCode":"123-123-123-123",//The error code is just a sample showing the structure of the error code.
        "message":"Required field missing or blank"
      }
    ],
    "retry":"N"
  }
}

1.2 2FA - Instant Link

This flow requires the user to enter their phone number and to click on the authentication link in the SMS that will be sent to that phone number.

Assumptions:

• There is a predefined smsRedirectUrl that will be used in the SMS sent to the user
• There is a predefined finalTargetUrl where the flow will be redirected to after following the authentication URL

1.2.1 Instant Link - Initiate the authentication

Sample API Request: POST

URL: https://caas-staging.coinme.com/services/sendAuthSms
headers:
"Authorization":"asdfghj", //authorization token, required
'User-Agent: partnerapi' //required
Request body:
{
  "mobileNumber": "15553031212", // required
  "deviceIp": "166.137.217.20", // IPv4 or IPv6
}

Sample API Response:

Successful Response:
{
  "data":
  {
    "authUrl": "www.example.com/auth/aBc123" // smsRedirectUrl with authId appended to the path (aBc123)
  },
  "errorResponse": null
}

Failure Response:
{
  "data": null,
  "errorResponse": {
    "httpStatus":"200",
    "timestamp":"2022-02-01T18:59:28.297Z",//UTC
    "path":"POST /services/sendAuthSms",
    "errorData": [
      {
        "errorCode":"123-123-123-123",//The error code is just a sample showing the structure of the error code.
        "message":"Failed to send auth SMS to the user"
      }
    ],
    "retry":"N"
  }
}

Additionally, an SMS with the smsRedirectUrl + authId is sent to the user.

1.2.2 Instant Link - Follow the authentication URL

There are two options here, depending on the choice of smsRedirectUrl.

HttpMethod: GET

First option:

The smsRedirectUrl is a URL in the Coinme domain, eg:

https://caas-staging.coinme.com/services/smsAuth/{authId}

This URL will be presented to the user in the authentication SMS. A single SMS has a limit of 160 characters, and assuming the authId is 6 characters, this would leave about 100 characters to explain to the user what the message is and that they need to click on it to authenticate.

Second option:

The smsRedirectUrl is in Partner's domain, eg:

https://www.partner.com/smsAuth/{authId}

When the user clicks on the link in the auth SMS, they will be taken to a Partner endpoint, and the Partner would need to redirect to the Coinme URL from the first option, passing the authId

Whichever option is picked, the user will ultimately be redirected to the predefined finalTargetUrl with the vfp value appended as a query parameter.

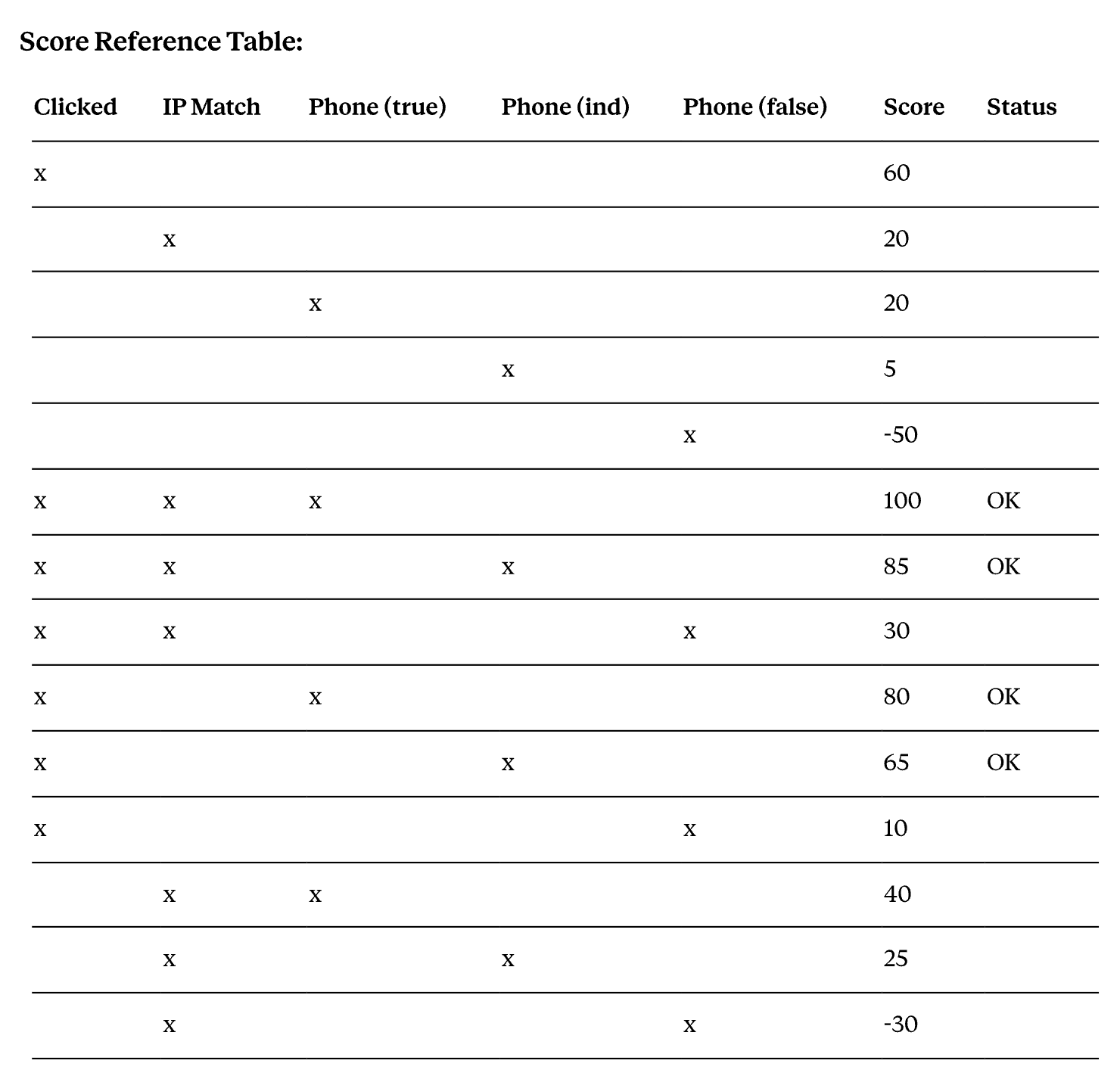

1.2.3 Instant Link - Check the authentication result

Extract the vfp value from the URL and use it to ask for the result of the authentication.

Sample API Request: POST

URL: https://caas-staging.coinme.com/services/authLinkResult
headers:
"Authorization":"asdfghj", //authorization token, required
'User-Agent: partnerapi' //required
Request body:
{
  "verificationFingerprint": "def456..." // extracted from the URL at finalTargetUrl
}

Sample API Response:

Successful Response:
{
  "data":
  {
    "authenticatedPhoneNumber": "15553031212"
  },
  "errorResponse": null
}

Failure Response:
{
  "data": null,
  "errorResponse": {
    "httpStatus":"200",
    "timestamp":"2022-02-01T18:59:28.297Z",//UTC
    "path":"POST /services/sendAuthSms",
    "errorData": [
      {
        "errorCode":"123-123-123-123",//The error code is just a sample showing the structure of the error code.
        "message":"Required field missing or blank"
      }
    ],
    "retry":"N"
  }
}

2. Pre-Fill

The following API will attempt to retrieve a user's personal information, given their phone number and social security number. To keep the information confidential, Coinme uses a third party, VeryGoodSecurity, as a reverse proxy to create a token for the SSN upon request and then decrypt the token on the request to Prove’s pre-fill service.

A list of reason codes for this endpoint can be found here

The following is the API used to accomplish this:

Sample API Request: POST

URL: https://caas-staging.coinme.com/services/identity
headers:
"Authorization":"asdfghj", //authorization token, required
'User-Agent: partnerapi' //required
Request body:
{
  "ssn": "123456789", //token from VGS api call
  "phoneNumber":"1234567890" //10-digit phone number
}

Sample API Response:

Success:
{
	"data": {
		"requestId": "<<UUID>>",
		"status": 0,
		"description": "Success.",
		"additionalInfo": null,
		"response": {
			"transactionId": "12228113388",
			"phoneNumber": "<<User Phone Number>>",
			"lineType": "Landline",
			"carrier": "<<Carrier>>",
			"countryCode": "US",
			"reasonCodes": [
			<<List of 2-digit reason codes>>
			],
			"individual": {
				"firstName": "<<fname>>",
				"lastName": "<<lname>>",
				"addresses": [
					{
						"address": "<<street>>",
						"extendedAddress": "",
						"city": "<<city>>",
						"region": "<<state>>",
						"postalCode": "<<zip>>"
					}
				],
				"emailAddresses": null,
				"dob": "YYYY-MM-dd",
				"ssn": "<<SSN Token>>"
			}
		}
	},
	"errorResponse": null
}

Errors:
Invalid phone number:

{
	"data": null,
	"errorResponse": {
		"timestamp": "2023-08-30T04:43:56.286644803Z",
		"httpStatus": 200,
		"errorData": [
			{
				"errorCode": "131-400-110-004",
				"message": "Subscriber is not found on the required whitelist. - "
			}
		],
		"path": "POST /prove/identity"
	}
}

Invalid phone number length

{
	"data": null,
	"errorResponse": {
		"timestamp": "2023-08-30T04:45:35.271987363Z",
		"httpStatus": 200,
		"errorData": [
			{
				"errorCode": "131-400-110-003",
				"message": "Parameter is invalid. - phoneNumber invalid."
			}
		],
		"path": "POST /prove/identity"
	}
}

Missing phone number:

{
	"data": null,
	"errorResponse": {
		"timestamp": "2023-08-30T04:46:36.775723042Z",
		"httpStatus": 200,
		"errorData": [
			{
				"errorCode": "131-400-110-667",
				"message": "phoneNumber must not be blank"
			}
		],
		"path": "POST /prove/identity"
	}
}

Missing SSN:

{
	"data": null,
	"errorResponse": {
		"timestamp": "2023-08-30T04:45:53.539677598Z",
		"httpStatus": 200,
		"errorData": [
			{
				"errorCode": "131-400-110-667",
				"message": "ssn must not be blank"
			}
		],
		"path": "POST /prove/identity"
	}
}

Invalid SSN Format or No response found:

{
	"data": null,
	"errorResponse": {
		"timestamp": "2023-08-30T04:47:18.453023706Z",
		"httpStatus": 200,
		"errorData": [
			{
				"errorCode": "131-400-110-006",
				"message": "prove could not find the requested user: full ssn mismatch"
			}
		],
		"path": "POST /prove/identity"
	}
}

3. Customer Verify

This endpoint must be called to verify that the submitted data correctly matches the customer associated with it. The more data input, the more accurate a result can be returned. To keep the information confidential, Coinme uses a third party, VeryGoodSecurity, as a reverse proxy to create a token for the ssn upon the request and then decrypt the token on the request to Prove’s pre-fill service.

A list of reason codes for this endpoint can be found here

Request

Sample API Request: POST

URL: https://caas-staging.coinme.com/services/verify
headers:
"Authorization":"asdfghj", //authorization token, required
'User-Agent: partnerapi' //required
Request body:
{
  "ssn": "123456789" //token from VGS api call -- Mandatory
  "phoneNumber":"1234567890" //10-digit phone number -- Mandatory
  "consentStatus": "optedIn" //enum of optedIn, optedOut, notCollected, unknown --Optional
  "firstName": "fname" //Optional
  "lastName": "lname" //Optional
  "address": "123 Street St." //Optional
  "extendedAddress":"Apt. 2" //Optional
  "city":"Seattle" //Optional
  "region":"WA" //State -- Optional
  "postalCode":"12345" //Optional
  "dob": "YYYY-MM-dd" //Optional
}

Response

Sample API Response:

Success:
{
	"data": {
		"requestId": "<<UUID>>",
		"status": 0,
		"description": "Success.",
		"additionalInfo": null,
		"response": {
			"verified": true, //boolean to say if the data matches
			"transactionId": "12228136833",
			"payfoneAlias": "<<payfoneAliasId>>",
			"phoneNumber": "<<inputPhoneNumber>>",
			"lineType": "Landline",
			"carrier": "<<carrier>>",
			"countryCode": "US",
			"reasonCodes": [
			<<List of 2-digit reason codes>>
			],
			"address": {
				"distance": 0.0,
				"addressScore": 100, //0-100 on matching of address
				"streetNumber": 100, //0-100 on matching of street number
				"street": false, // boolean on street match
				"city": true, //boolean on city match
				"region": true, //boolean on region match
				"postalCode": true //boolean on postal code match
			},
			"name": {
				"nameScore": 100, //0-100 on matching of full name
				"firstName": 100, //0-100 on matching of first name
				"lastName": 100 //0-100 on matching of last name
			},
			"identifiers": {
				"last4": false, //if last4 used instead of full ssn (should always be false in this case)
				"dob": true, //boolean on dob matches
				"driversLicenseState": false, //boolean on drivers license state match (not supported at this time)
				"driversLicenseNumber": false, //boolean on drivers license number match (not supported at this time)
				"ssn": true //boolean on ssn match
			},
			"knowYourCustomer": { //AML or Sanctions hits
				"totalHits": 1,
				"amlTypeLists": [
					{
						"amlType": "pep-class-1",
						"listHits": 1,
						"fields": [
							{
								"source": "europe-sanction-list",
								"name": "TestName",
								"value": "TestValue"
							}
						]
					}
				]
			},
			"matchDataType": null //not suported at this time
		}
	},
	"errorResponse": null
}

Errors:
Invalid phone number:

{
	"data": null,
	"errorResponse": {
		"timestamp": "2023-08-30T04:43:56.286644803Z",
		"httpStatus": 200,
		"errorData": [
			{
				"errorCode": "131-400-110-004",
				"message": "Subscriber is not found on the required whitelist. - "
			}
		],
		"path": "POST /prove/identity"
	}
}

Invalid phone number length

{
	"data": null,
	"errorResponse": {
		"timestamp": "2023-08-30T04:45:35.271987363Z",
		"httpStatus": 200,
		"errorData": [
			{
				"errorCode": "131-400-110-003",
				"message": "Parameter is invalid. - phoneNumber invalid."
			}
		],
		"path": "POST /prove/identity"
	}
}

Missing phone number:

{
	"data": null,
	"errorResponse": {
		"timestamp": "2023-08-30T04:46:36.775723042Z",
		"httpStatus": 200,
		"errorData": [
			{
				"errorCode": "131-400-110-667",
				"message": "phoneNumber must not be blank"
			}
		],
		"path": "POST /prove/identity"
	}
}

Missing SSN:

{
	"data": null,
	"errorResponse": {
		"timestamp": "2023-08-30T04:45:53.539677598Z",
		"httpStatus": 200,
		"errorData": [
			{
				"errorCode": "131-400-110-667",
				"message": "ssn must not be blank"
			}
		],
		"path": "POST /prove/identity"
	}
}

4. Customer Onboarding

Verify Customer KYC and create a new customer account if one does not exist

For staging, the Customer Onboarding URL ishttps://secure.apis.coinme.org/services/customeronboarding For production, ishttps://secure.apis.coinme.com/services/customeronboarding

Assumptions:

• The Partner should perform 2FA and ensure it is passed. They should not send onboarding requests if 2FA is not passed.

A list of reason codes for this endpoint can be found here

Sample API Request: POST

URL: https://secure.apis.coinme.org/services/customeronboarding
headers:
"Authorization":"asdfghj", //authorization token, required
'User-Agent: partnerapi' //required
Request body:
{
    "email": "[email protected]",//required
    "fullName": {
        "firstName": "TestFirst",//required
        "middleName": "TestMiddle",
        "lastName": "TestLast",//required
        "otherNames":[
          "secondLastName",
          "otherName1",
          "otherName2"
        ]
    },
    "address": {
        "line1": "1234 Example St",//required
        "line2": "Apt 4",
        "city": "Foo City",//required
        "state": "CA",//required
        "postalCode": "93420",//required
        "country": "USA"//required, 3 Character abbreviation
    },
    "phoneNumber": {
        "countryCode": "1",//required
        "number": "8001234567"//required
    },
    "dateOfBirth": "1965-02-10",//required
    "SSN": "123-123-1234"//required
}

Sample API Response:

Successful Response:
{
  "data":
  {
    "customerId": "654987321"
  },
  "errorResponse": null
}

Failure Response:
{
  "data": null,
  "errorResponse": {
    "httpStatus":"200",
    "timestamp":"2022-02-01T18:59:28.297Z",//UTC
    "path":"/services/customeronboarding POST",
    "errorData": [
      {
        "errorCode":"123-123-123-123",//The error code is just a sample showing the structure of the error code.
        "message":"Customer identity could not be validated"
      }
    ],
    "retry":"N"
  }
}

Once a successful response is received from Customer Onboarding, then a customer account is onboarded with the associated customerId.

POST /customeronboarding

Error messages for errors that occur while performing KYC:

Error Codes

Identity Reason Codes

Verify Reason Codes
